ISO 8744

DIN EN ISO 8744

بدون امتیاز

Pins

ژانویه 15, 2025

stdpart

گالری قطعه

گالری قطعه

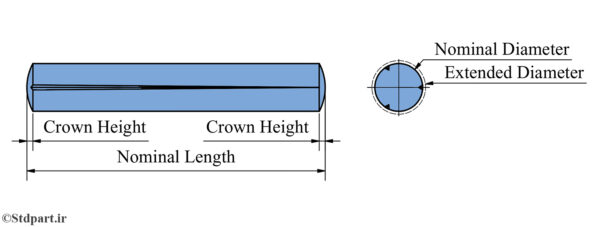

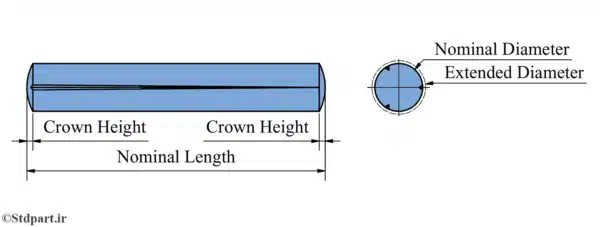

Extended Diameter [mm]	Crown Height [mm]	Nominal Length [mm]	Nominal Diameter [mm]	Part Number
1.63	0.2	8	1.5	ISO 8744 - 1.5 x 8
1.63	0.2	10	1.5	ISO 8744 - 1.5 x 10
1.6	0.2	12	1.5	ISO 8744 - 1.5 x 12
1.6	0.2	14	1.5	ISO 8744 - 1.5 x 14
1.6	0.2	16	1.5	ISO 8744 - 1.5 x 16
1.6	0.2	18	1.5	ISO 8744 - 1.5 x 18
1.6	0.2	20	1.5	ISO 8744 - 1.5 x 20
2.15	0.25	8	2	ISO 8744 - 2 x 8
2.15	0.25	10	2	ISO 8744 - 2 x 10
2.15	0.25	12	2	ISO 8744 - 2 x 12
2.15	0.25	14	2	ISO 8744 - 2 x 14
2.15	0.25	16	2	ISO 8744 - 2 x 16
2.15	0.25	18	2	ISO 8744 - 2 x 18
2.15	0.25	20	2	ISO 8744 - 2 x 20
2.15	0.25	22	2	ISO 8744 - 2 x 22
2.15	0.25	24	2	ISO 8744 - 2 x 24
2.15	0.25	26	2	ISO 8744 - 2 x 26
2.15	0.25	28	2	ISO 8744 - 2 x 28
2.15	0.25	30	2	ISO 8744 - 2 x 30
2.7	0.3	8	2.5	ISO 8744 - 2.5 x 8
2.7	0.3	10	2.5	ISO 8744 - 2.5 x 10
2.7	0.3	12	2.5	ISO 8744 - 2.5 x 12
2.7	0.3	14	2.5	ISO 8744 - 2.5 x 14
2.7	0.3	16	2.5	ISO 8744 - 2.5 x 16
2.65	0.3	18	2.5	ISO 8744 - 2.5 x 18
2.65	0.3	20	2.5	ISO 8744 - 2.5 x 20
2.65	0.3	22	2.5	ISO 8744 - 2.5 x 22
2.65	0.3	24	2.5	ISO 8744 - 2.5 x 24
2.65	0.3	26	2.5	ISO 8744 - 2.5 x 26
2.65	0.3	28	2.5	ISO 8744 - 2.5 x 28
2.65	0.3	30	2.5	ISO 8744 - 2.5 x 30
3.25	0.4	8	3	ISO 8744 - 3 x 8
3.3	0.4	10	3	ISO 8744 - 3 x 10
3.3	0.4	12	3	ISO 8744 - 3 x 12
3.3	0.4	14	3	ISO 8744 - 3 x 14
3.3	0.4	16	3	ISO 8744 - 3 x 16
3.25	0.4	18	3	ISO 8744 - 3 x 18
3.25	0.4	20	3	ISO 8744 - 3 x 20
3.25	0.4	22	3	ISO 8744 - 3 x 22
3.25	0.4	24	3	ISO 8744 - 3 x 24
3.2	0.4	26	3	ISO 8744 - 3 x 26
3.2	0.4	28	3	ISO 8744 - 3 x 28
3.2	0.4	30	3	ISO 8744 - 3 x 30
3.2	0.4	32	3	ISO 8744 - 3 x 32
3.2	0.4	35	3	ISO 8744 - 3 x 35
3.2	0.4	40	3	ISO 8744 - 3 x 40
4.3	0.5	8	4	ISO 8744 - 4 x 8
4.3	0.5	10	4	ISO 8744 - 4 x 10
4.35	0.5	12	4	ISO 8744 - 4 x 12
4.35	0.5	14	4	ISO 8744 - 4 x 14
4.35	0.5	16	4	ISO 8744 - 4 x 16
4.35	0.5	18	4	ISO 8744 - 4 x 18
4.35	0.5	20	4	ISO 8744 - 4 x 20
4.3	0.5	22	4	ISO 8744 - 4 x 22
4.3	0.5	24	4	ISO 8744 - 4 x 24
4.3	0.5	26	4	ISO 8744 - 4 x 26
4.3	0.5	28	4	ISO 8744 - 4 x 28
4.3	0.5	30	4	ISO 8744 - 4 x 30
4.3	0.5	32	4	ISO 8744 - 4 x 32
4.3	0.5	35	4	ISO 8744 - 4 x 35
4.25	0.5	40	4	ISO 8744 - 4 x 40
4.25	0.5	45	4	ISO 8744 - 4 x 45
4.25	0.5	50	4	ISO 8744 - 4 x 50
4.25	0.5	55	4	ISO 8744 - 4 x 55
4.25	0.5	60	4	ISO 8744 - 4 x 60
5.3	0.63	8	5	ISO 8744 - 5 x 8
5.3	0.63	10	5	ISO 8744 - 5 x 10
5.3	0.63	12	5	ISO 8744 - 5 x 12
5.35	0.63	14	5	ISO 8744 - 5 x 14
5.35	0.63	16	5	ISO 8744 - 5 x 16
5.35	0.63	18	5	ISO 8744 - 5 x 18
5.35	0.63	20	5	ISO 8744 - 5 x 20
5.3	0.63	22	5	ISO 8744 - 5 x 22
5.3	0.63	24	5	ISO 8744 - 5 x 24
5.3	0.63	26	5	ISO 8744 - 5 x 26
5.3	0.63	28	5	ISO 8744 - 5 x 28
5.3	0.63	30	5	ISO 8744 - 5 x 30
5.3	0.63	32	5	ISO 8744 - 5 x 32
5.3	0.63	35	5	ISO 8744 - 5 x 35
5.3	0.63	40	5	ISO 8744 - 5 x 40
5.25	0.63	45	5	ISO 8744 - 5 x 45
5.25	0.63	50	5	ISO 8744 - 5 x 50
5.25	0.63	55	5	ISO 8744 - 5 x 55
5.25	0.63	60	5	ISO 8744 - 5 x 60
6.3	0.8	10	6	ISO 8744 - 6 x 10
6.3	0.8	12	6	ISO 8744 - 6 x 12
6.35	0.8	14	6	ISO 8744 - 6 x 14
6.35	0.8	16	6	ISO 8744 - 6 x 16
6.35	0.8	18	6	ISO 8744 - 6 x 18
6.35	0.8	20	6	ISO 8744 - 6 x 20
6.35	0.8	22	6	ISO 8744 - 6 x 22
6.35	0.8	24	6	ISO 8744 - 6 x 24
6.35	0.8	26	6	ISO 8744 - 6 x 26
6.35	0.8	28	6	ISO 8744 - 6 x 28
6.35	0.8	30	6	ISO 8744 - 6 x 30
6.3	0.8	32	6	ISO 8744 - 6 x 32
6.3	0.8	35	6	ISO 8744 - 6 x 35
6.3	0.8	40	6	ISO 8744 - 6 x 40
6.3	0.8	45	6	ISO 8744 - 6 x 45
6.3	0.8	50	6	ISO 8744 - 6 x 50
6.25	0.8	55	6	ISO 8744 - 6 x 55
6.25	0.8	60	6	ISO 8744 - 6 x 60
6.25	0.8	65	6	ISO 8744 - 6 x 65
6.25	0.8	70	6	ISO 8744 - 6 x 70
6.25	0.8	75	6	ISO 8744 - 6 x 75
6.25	0.8	80	6	ISO 8744 - 6 x 80
8.35	1	12	8	ISO 8744 - 8 x 12
8.35	1	14	8	ISO 8744 - 8 x 14
8.35	1	16	8	ISO 8744 - 8 x 16
8.4	1	18	8	ISO 8744 - 8 x 18
8.4	1	20	8	ISO 8744 - 8 x 20
8.4	1	22	8	ISO 8744 - 8 x 22
8.4	1	24	8	ISO 8744 - 8 x 24
8.4	1	26	8	ISO 8744 - 8 x 26
8.4	1	28	8	ISO 8744 - 8 x 28
8.4	1	30	8	ISO 8744 - 8 x 30
8.35	1	32	8	ISO 8744 - 8 x 32
8.35	1	35	8	ISO 8744 - 8 x 35
8.35	1	40	8	ISO 8744 - 8 x 40
8.35	1	45	8	ISO 8744 - 8 x 45
8.35	1	50	8	ISO 8744 - 8 x 50
8.35	1	55	8	ISO 8744 - 8 x 55
8.3	1	60	8	ISO 8744 - 8 x 60
8.3	1	65	8	ISO 8744 - 8 x 65
8.3	1	70	8	ISO 8744 - 8 x 70
8.3	1	75	8	ISO 8744 - 8 x 75
8.3	1	80	8	ISO 8744 - 8 x 80
8.25	1	85	8	ISO 8744 - 8 x 85
8.25	1	90	8	ISO 8744 - 8 x 90
8.25	1	95	8	ISO 8744 - 8 x 95
8.25	1	100	8	ISO 8744 - 8 x 100
10.4	1.2	14	10	ISO 8744 - 10 x 14
10.4	1.2	16	10	ISO 8744 - 10 x 16
10.4	1.2	18	10	ISO 8744 - 10 x 18
10.4	1.2	20	10	ISO 8744 - 10 x 20
10.45	1.2	22	10	ISO 8744 - 10 x 22
10.45	1.2	24	10	ISO 8744 - 10 x 24
10.45	1.2	26	10	ISO 8744 - 10 x 26
10.45	1.2	28	10	ISO 8744 - 10 x 28
10.45	1.2	30	10	ISO 8744 - 10 x 30
10.45	1.2	32	10	ISO 8744 - 10 x 32
10.45	1.2	35	10	ISO 8744 - 10 x 35
10.45	1.2	40	10	ISO 8744 - 10 x 40
10.4	1.2	45	10	ISO 8744 - 10 x 45
10.4	1.2	50	10	ISO 8744 - 10 x 50
10.4	1.2	55	10	ISO 8744 - 10 x 55
10.4	1.2	60	10	ISO 8744 - 10 x 60
10.35	1.2	65	10	ISO 8744 - 10 x 65
10.35	1.2	70	10	ISO 8744 - 10 x 70
10.35	1.2	75	10	ISO 8744 - 10 x 75
10.35	1.2	80	10	ISO 8744 - 10 x 80
10.35	1.2	85	10	ISO 8744 - 10 x 85
10.35	1.2	90	10	ISO 8744 - 10 x 90
10.35	1.2	95	10	ISO 8744 - 10 x 95
10.35	1.2	100	10	ISO 8744 - 10 x 100
10.3	1.2	120	10	ISO 8744 - 10 x 120
12.4	1.6	14	12	ISO 8744 - 12 x 14
12.4	1.6	16	12	ISO 8744 - 12 x 16
12.4	1.6	18	12	ISO 8744 - 12 x 18
12.4	1.6	20	12	ISO 8744 - 12 x 20
12.45	1.6	22	12	ISO 8744 - 12 x 22
12.45	1.6	24	12	ISO 8744 - 12 x 24
12.45	1.6	26	12	ISO 8744 - 12 x 26
12.45	1.6	28	12	ISO 8744 - 12 x 28
12.45	1.6	30	12	ISO 8744 - 12 x 30
12.45	1.6	32	12	ISO 8744 - 12 x 32
12.45	1.6	35	12	ISO 8744 - 12 x 35
12.45	1.6	40	12	ISO 8744 - 12 x 40
12.4	1.6	45	12	ISO 8744 - 12 x 45
12.4	1.6	50	12	ISO 8744 - 12 x 50
12.4	1.6	55	12	ISO 8744 - 12 x 55
12.4	1.6	60	12	ISO 8744 - 12 x 60
12.4	1.6	65	12	ISO 8744 - 12 x 65
12.3	1.6	70	12	ISO 8744 - 12 x 70
12.3	1.6	75	12	ISO 8744 - 12 x 75
12.3	1.6	80	12	ISO 8744 - 12 x 80
12.3	1.6	85	12	ISO 8744 - 12 x 85
12.3	1.6	90	12	ISO 8744 - 12 x 90
12.3	1.6	95	12	ISO 8744 - 12 x 95
12.3	1.6	100	12	ISO 8744 - 12 x 100
12.3	1.6	120	12	ISO 8744 - 12 x 120
16.5	2	22	16	ISO 8744 - 16 x 22
16.55	2	24	16	ISO 8744 - 16 x 24
16.6	2	26	16	ISO 8744 - 16 x 26
16.6	2	28	16	ISO 8744 - 16 x 28
16.6	2	30	16	ISO 8744 - 16 x 30
16.6	2	32	16	ISO 8744 - 16 x 32
16.6	2	35	16	ISO 8744 - 16 x 35
16.6	2	40	16	ISO 8744 - 16 x 40
16.6	2	45	16	ISO 8744 - 16 x 45
16.6	2	50	16	ISO 8744 - 16 x 50
16.55	2	55	16	ISO 8744 - 16 x 55
16.55	2	60	16	ISO 8744 - 16 x 60
16.55	2	65	16	ISO 8744 - 16 x 65
16.55	2	70	16	ISO 8744 - 16 x 70
16.55	2	75	16	ISO 8744 - 16 x 75
16.55	2	80	16	ISO 8744 - 16 x 80
16.55	2	85	16	ISO 8744 - 16 x 85
16.55	2	90	16	ISO 8744 - 16 x 90
16.5	2	95	16	ISO 8744 - 16 x 95
16.5	2	100	16	ISO 8744 - 16 x 100
16.5	2	120	16	ISO 8744 - 16 x 120
20.6	2.5	26	20	ISO 8744 - 20 x 26
20.6	2.5	28	20	ISO 8744 - 20 x 28
20.6	2.5	30	20	ISO 8744 - 20 x 30
20.6	2.5	32	20	ISO 8744 - 20 x 32
20.6	2.5	35	20	ISO 8744 - 20 x 35
20.6	2.5	40	20	ISO 8744 - 20 x 40
20.6	2.5	45	20	ISO 8744 - 20 x 45
20.6	2.5	50	20	ISO 8744 - 20 x 50
20.6	2.5	55	20	ISO 8744 - 20 x 55
20.6	2.5	60	20	ISO 8744 - 20 x 60
20.6	2.5	65	20	ISO 8744 - 20 x 65
20.6	2.5	70	20	ISO 8744 - 20 x 70
20.6	2.5	75	20	ISO 8744 - 20 x 75
20.6	2.5	80	20	ISO 8744 - 20 x 80
20.6	2.5	85	20	ISO 8744 - 20 x 85
20.6	2.5	90	20	ISO 8744 - 20 x 90
20.6	2.5	95	20	ISO 8744 - 20 x 95
20.6	2.5	100	20	ISO 8744 - 20 x 100
20.6	2.5	120	20	ISO 8744 - 20 x 120
25.6	3	26	25	ISO 8744 - 25 x 26
25.6	3	28	25	ISO 8744 - 25 x 28
25.6	3	30	25	ISO 8744 - 25 x 30
25.6	3	32	25	ISO 8744 - 25 x 32
25.6	3	35	25	ISO 8744 - 25 x 35
25.6	3	40	25	ISO 8744 - 25 x 40
25.6	3	45	25	ISO 8744 - 25 x 45
25.6	3	50	25	ISO 8744 - 25 x 50
25.6	3	55	25	ISO 8744 - 25 x 55
25.6	3	60	25	ISO 8744 - 25 x 60
25.6	3	65	25	ISO 8744 - 25 x 65
25.6	3	70	25	ISO 8744 - 25 x 70
25.6	3	75	25	ISO 8744 - 25 x 75
25.6	3	80	25	ISO 8744 - 25 x 80
25.6	3	85	25	ISO 8744 - 25 x 85
25.6	3	90	25	ISO 8744 - 25 x 90
25.6	3	95	25	ISO 8744 - 25 x 95
25.6	3	100	25	ISO 8744 - 25 x 100
25.6	3	120	25	ISO 8744 - 25 x 120
