DIN EN ISO 8740
ISO 8740
بدون امتیاز
stdpart
گالری قطعه
گالری قطعه

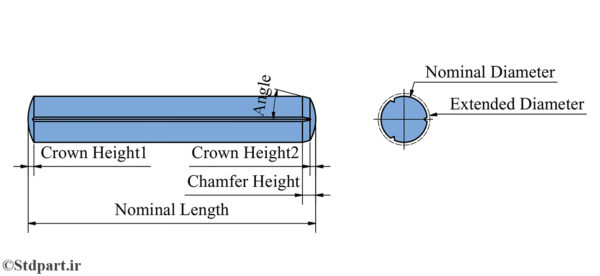

| Extended Diameter [mm] | Chamfer Angle [deg] | Chamfer Height [mm] | Crown Height2 [mm] | Crown Height1 [mm] | Nominal Length [mm] | Nominal Diameter [mm] | Part Number |
|---|---|---|---|---|---|---|---|
| 1.6 | 15 | 0.6 | 0.12 | 0.2 | 8 | 1.5 | ISO 8740 - 1.5 x 8 |
| 1.6 | 15 | 0.6 | 0.12 | 0.2 | 10 | 1.5 | ISO 8740 - 1.5 x 10 |
| 1.6 | 15 | 0.6 | 0.12 | 0.2 | 12 | 1.5 | ISO 8740 - 1.5 x 12 |
| 1.6 | 15 | 0.6 | 0.12 | 0.2 | 14 | 1.5 | ISO 8740 - 1.5 x 14 |
| 1.6 | 15 | 0.6 | 0.12 | 0.2 | 16 | 1.5 | ISO 8740 - 1.5 x 16 |
| 1.6 | 15 | 0.6 | 0.12 | 0.2 | 18 | 1.5 | ISO 8740 - 1.5 x 18 |
| 1.6 | 15 | 0.6 | 0.12 | 0.2 | 20 | 1.5 | ISO 8740 - 1.5 x 20 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 8 | 2 | ISO 8740 - 2 x 8 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 10 | 2 | ISO 8740 - 2 x 10 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 12 | 2 | ISO 8740 - 2 x 12 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 14 | 2 | ISO 8740 - 2 x 14 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 16 | 2 | ISO 8740 - 2 x 16 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 18 | 2 | ISO 8740 - 2 x 18 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 20 | 2 | ISO 8740 - 2 x 20 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 22 | 2 | ISO 8740 - 2 x 22 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 24 | 2 | ISO 8740 - 2 x 24 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 26 | 2 | ISO 8740 - 2 x 26 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 28 | 2 | ISO 8740 - 2 x 28 |
| 2.15 | 15 | 0.8 | 0.18 | 0.25 | 30 | 2 | ISO 8740 - 2 x 30 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 10 | 2.5 | ISO 8740 - 2.5 x 10 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 12 | 2.5 | ISO 8740 - 2.5 x 12 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 14 | 2.5 | ISO 8740 - 2.5 x 14 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 16 | 2.5 | ISO 8740 - 2.5 x 16 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 18 | 2.5 | ISO 8740 - 2.5 x 18 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 20 | 2.5 | ISO 8740 - 2.5 x 20 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 22 | 2.5 | ISO 8740 - 2.5 x 22 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 24 | 2.5 | ISO 8740 - 2.5 x 24 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 26 | 2.5 | ISO 8740 - 2.5 x 26 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 28 | 2.5 | ISO 8740 - 2.5 x 28 |
| 2.65 | 15 | 1 | 0.25 | 0.3 | 30 | 2.5 | ISO 8740 - 2.5 x 30 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 10 | 3 | ISO 8740 - 3 x 10 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 12 | 3 | ISO 8740 - 3 x 12 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 14 | 3 | ISO 8740 - 3 x 14 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 16 | 3 | ISO 8740 - 3 x 16 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 18 | 3 | ISO 8740 - 3 x 18 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 20 | 3 | ISO 8740 - 3 x 20 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 22 | 3 | ISO 8740 - 3 x 22 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 24 | 3 | ISO 8740 - 3 x 24 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 26 | 3 | ISO 8740 - 3 x 26 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 28 | 3 | ISO 8740 - 3 x 28 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 30 | 3 | ISO 8740 - 3 x 30 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 32 | 3 | ISO 8740 - 3 x 32 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 35 | 3 | ISO 8740 - 3 x 35 |
| 3.2 | 15 | 1.2 | 0.3 | 0.4 | 40 | 3 | ISO 8740 - 3 x 40 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 10 | 4 | ISO 8740 - 4 x 10 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 12 | 4 | ISO 8740 - 4 x 12 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 14 | 4 | ISO 8740 - 4 x 14 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 16 | 4 | ISO 8740 - 4 x 16 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 18 | 4 | ISO 8740 - 4 x 18 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 20 | 4 | ISO 8740 - 4 x 20 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 22 | 4 | ISO 8740 - 4 x 22 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 24 | 4 | ISO 8740 - 4 x 24 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 26 | 4 | ISO 8740 - 4 x 26 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 28 | 4 | ISO 8740 - 4 x 28 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 30 | 4 | ISO 8740 - 4 x 30 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 32 | 4 | ISO 8740 - 4 x 32 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 35 | 4 | ISO 8740 - 4 x 35 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 40 | 4 | ISO 8740 - 4 x 40 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 45 | 4 | ISO 8740 - 4 x 45 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 50 | 4 | ISO 8740 - 4 x 50 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 55 | 4 | ISO 8740 - 4 x 55 |
| 4.25 | 15 | 1.4 | 0.4 | 0.5 | 60 | 4 | ISO 8740 - 4 x 60 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 14 | 5 | ISO 8740 - 5 x 14 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 16 | 5 | ISO 8740 - 5 x 16 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 18 | 5 | ISO 8740 - 5 x 18 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 20 | 5 | ISO 8740 - 5 x 20 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 22 | 5 | ISO 8740 - 5 x 22 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 24 | 5 | ISO 8740 - 5 x 24 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 26 | 5 | ISO 8740 - 5 x 26 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 28 | 5 | ISO 8740 - 5 x 28 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 30 | 5 | ISO 8740 - 5 x 30 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 32 | 5 | ISO 8740 - 5 x 32 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 35 | 5 | ISO 8740 - 5 x 35 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 40 | 5 | ISO 8740 - 5 x 40 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 45 | 5 | ISO 8740 - 5 x 45 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 50 | 5 | ISO 8740 - 5 x 50 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 55 | 5 | ISO 8740 - 5 x 55 |
| 5.25 | 15 | 1.7 | 0.5 | 0.63 | 60 | 5 | ISO 8740 - 5 x 60 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 14 | 6 | ISO 8740 - 6 x 14 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 16 | 6 | ISO 8740 - 6 x 16 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 18 | 6 | ISO 8740 - 6 x 18 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 20 | 6 | ISO 8740 - 6 x 20 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 22 | 6 | ISO 8740 - 6 x 22 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 24 | 6 | ISO 8740 - 6 x 24 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 26 | 6 | ISO 8740 - 6 x 26 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 28 | 6 | ISO 8740 - 6 x 28 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 30 | 6 | ISO 8740 - 6 x 30 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 32 | 6 | ISO 8740 - 6 x 32 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 35 | 6 | ISO 8740 - 6 x 35 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 40 | 6 | ISO 8740 - 6 x 40 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 45 | 6 | ISO 8740 - 6 x 45 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 50 | 6 | ISO 8740 - 6 x 50 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 55 | 6 | ISO 8740 - 6 x 55 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 60 | 6 | ISO 8740 - 6 x 60 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 65 | 6 | ISO 8740 - 6 x 65 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 70 | 6 | ISO 8740 - 6 x 70 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 75 | 6 | ISO 8740 - 6 x 75 |
| 6.3 | 15 | 2.1 | 0.6 | 0.8 | 80 | 6 | ISO 8740 - 6 x 80 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 14 | 8 | ISO 8740 - 8 x 14 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 16 | 8 | ISO 8740 - 8 x 16 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 18 | 8 | ISO 8740 - 8 x 18 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 20 | 8 | ISO 8740 - 8 x 20 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 22 | 8 | ISO 8740 - 8 x 22 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 24 | 8 | ISO 8740 - 8 x 24 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 26 | 8 | ISO 8740 - 8 x 26 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 28 | 8 | ISO 8740 - 8 x 28 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 30 | 8 | ISO 8740 - 8 x 30 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 32 | 8 | ISO 8740 - 8 x 32 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 35 | 8 | ISO 8740 - 8 x 35 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 40 | 8 | ISO 8740 - 8 x 40 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 45 | 8 | ISO 8740 - 8 x 45 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 50 | 8 | ISO 8740 - 8 x 50 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 55 | 8 | ISO 8740 - 8 x 55 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 60 | 8 | ISO 8740 - 8 x 60 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 65 | 8 | ISO 8740 - 8 x 65 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 70 | 8 | ISO 8740 - 8 x 70 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 75 | 8 | ISO 8740 - 8 x 75 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 80 | 8 | ISO 8740 - 8 x 80 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 85 | 8 | ISO 8740 - 8 x 85 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 90 | 8 | ISO 8740 - 8 x 90 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 95 | 8 | ISO 8740 - 8 x 95 |
| 8.3 | 15 | 2.6 | 0.8 | 1 | 100 | 8 | ISO 8740 - 8 x 100 |
| 10.35 | 15 | 3 | 1 | 1.2 | 14 | 10 | ISO 8740 - 10 x 14 |
| 10.35 | 15 | 3 | 1 | 1.2 | 16 | 10 | ISO 8740 - 10 x 16 |
| 10.35 | 15 | 3 | 1 | 1.2 | 18 | 10 | ISO 8740 - 10 x 18 |
| 10.35 | 15 | 3 | 1 | 1.2 | 20 | 10 | ISO 8740 - 10 x 20 |
| 10.35 | 15 | 3 | 1 | 1.2 | 22 | 10 | ISO 8740 - 10 x 22 |
| 10.35 | 15 | 3 | 1 | 1.2 | 24 | 10 | ISO 8740 - 10 x 24 |
| 10.35 | 15 | 3 | 1 | 1.2 | 26 | 10 | ISO 8740 - 10 x 26 |
| 10.35 | 15 | 3 | 1 | 1.2 | 28 | 10 | ISO 8740 - 10 x 28 |
| 10.35 | 15 | 3 | 1 | 1.2 | 30 | 10 | ISO 8740 - 10 x 30 |
| 10.35 | 15 | 3 | 1 | 1.2 | 32 | 10 | ISO 8740 - 10 x 32 |
| 10.35 | 15 | 3 | 1 | 1.2 | 35 | 10 | ISO 8740 - 10 x 35 |
| 10.35 | 15 | 3 | 1 | 1.2 | 40 | 10 | ISO 8740 - 10 x 40 |
| 10.35 | 15 | 3 | 1 | 1.2 | 45 | 10 | ISO 8740 - 10 x 45 |
| 10.35 | 15 | 3 | 1 | 1.2 | 50 | 10 | ISO 8740 - 10 x 50 |
| 10.35 | 15 | 3 | 1 | 1.2 | 55 | 10 | ISO 8740 - 10 x 55 |
| 10.35 | 15 | 3 | 1 | 1.2 | 60 | 10 | ISO 8740 - 10 x 60 |
| 10.35 | 15 | 3 | 1 | 1.2 | 65 | 10 | ISO 8740 - 10 x 65 |
| 10.35 | 15 | 3 | 1 | 1.2 | 70 | 10 | ISO 8740 - 10 x 70 |
| 10.35 | 15 | 3 | 1 | 1.2 | 75 | 10 | ISO 8740 - 10 x 75 |
| 10.35 | 15 | 3 | 1 | 1.2 | 80 | 10 | ISO 8740 - 10 x 80 |
| 10.35 | 15 | 3 | 1 | 1.2 | 85 | 10 | ISO 8740 - 10 x 85 |
| 10.35 | 15 | 3 | 1 | 1.2 | 90 | 10 | ISO 8740 - 10 x 90 |
| 10.35 | 15 | 3 | 1 | 1.2 | 95 | 10 | ISO 8740 - 10 x 95 |
| 10.35 | 15 | 3 | 1 | 1.2 | 100 | 10 | ISO 8740 - 10 x 100 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 18 | 12 | ISO 8740 - 12 x 18 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 20 | 12 | ISO 8740 - 12 x 20 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 22 | 12 | ISO 8740 - 12 x 22 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 24 | 12 | ISO 8740 - 12 x 24 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 26 | 12 | ISO 8740 - 12 x 26 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 28 | 12 | ISO 8740 - 12 x 28 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 30 | 12 | ISO 8740 - 12 x 30 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 32 | 12 | ISO 8740 - 12 x 32 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 35 | 12 | ISO 8740 - 12 x 35 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 40 | 12 | ISO 8740 - 12 x 40 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 45 | 12 | ISO 8740 - 12 x 45 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 50 | 12 | ISO 8740 - 12 x 50 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 55 | 12 | ISO 8740 - 12 x 55 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 60 | 12 | ISO 8740 - 12 x 60 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 65 | 12 | ISO 8740 - 12 x 65 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 70 | 12 | ISO 8740 - 12 x 70 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 75 | 12 | ISO 8740 - 12 x 75 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 80 | 12 | ISO 8740 - 12 x 80 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 85 | 12 | ISO 8740 - 12 x 85 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 90 | 12 | ISO 8740 - 12 x 90 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 95 | 12 | ISO 8740 - 12 x 95 |
| 12.35 | 15 | 3.8 | 1.2 | 1.6 | 100 | 12 | ISO 8740 - 12 x 100 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 22 | 16 | ISO 8740 - 16 x 22 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 24 | 16 | ISO 8740 - 16 x 24 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 26 | 16 | ISO 8740 - 16 x 26 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 28 | 16 | ISO 8740 - 16 x 28 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 30 | 16 | ISO 8740 - 16 x 30 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 32 | 16 | ISO 8740 - 16 x 32 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 35 | 16 | ISO 8740 - 16 x 35 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 40 | 16 | ISO 8740 - 16 x 40 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 45 | 16 | ISO 8740 - 16 x 45 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 50 | 16 | ISO 8740 - 16 x 50 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 55 | 16 | ISO 8740 - 16 x 55 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 60 | 16 | ISO 8740 - 16 x 60 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 65 | 16 | ISO 8740 - 16 x 65 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 70 | 16 | ISO 8740 - 16 x 70 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 75 | 16 | ISO 8740 - 16 x 75 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 80 | 16 | ISO 8740 - 16 x 80 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 85 | 16 | ISO 8740 - 16 x 85 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 90 | 16 | ISO 8740 - 16 x 90 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 95 | 16 | ISO 8740 - 16 x 95 |
| 16.4 | 15 | 4.6 | 1.6 | 2 | 100 | 16 | ISO 8740 - 16 x 100 |
| 20.5 | 15 | 6 | 2 | 2.5 | 26 | 20 | ISO 8740 - 20 x 26 |
| 20.5 | 15 | 6 | 2 | 2.5 | 28 | 20 | ISO 8740 - 20 x 28 |
| 20.5 | 15 | 6 | 2 | 2.5 | 30 | 20 | ISO 8740 - 20 x 30 |
| 20.5 | 15 | 6 | 2 | 2.5 | 32 | 20 | ISO 8740 - 20 x 32 |
| 20.5 | 15 | 6 | 2 | 2.5 | 35 | 20 | ISO 8740 - 20 x 35 |
| 20.5 | 15 | 6 | 2 | 2.5 | 40 | 20 | ISO 8740 - 20 x 40 |
| 20.5 | 15 | 6 | 2 | 2.5 | 45 | 20 | ISO 8740 - 20 x 45 |
| 20.5 | 15 | 6 | 2 | 2.5 | 50 | 20 | ISO 8740 - 20 x 50 |
| 20.5 | 15 | 6 | 2 | 2.5 | 55 | 20 | ISO 8740 - 20 x 55 |
| 20.5 | 15 | 6 | 2 | 2.5 | 60 | 20 | ISO 8740 - 20 x 60 |
| 20.5 | 15 | 6 | 2 | 2.5 | 65 | 20 | ISO 8740 - 20 x 65 |
| 20.5 | 15 | 6 | 2 | 2.5 | 70 | 20 | ISO 8740 - 20 x 70 |
| 20.5 | 15 | 6 | 2 | 2.5 | 75 | 20 | ISO 8740 - 20 x 75 |
| 20.5 | 15 | 6 | 2 | 2.5 | 80 | 20 | ISO 8740 - 20 x 80 |
| 20.5 | 15 | 6 | 2 | 2.5 | 85 | 20 | ISO 8740 - 20 x 85 |
| 20.5 | 15 | 6 | 2 | 2.5 | 90 | 20 | ISO 8740 - 20 x 90 |
| 20.5 | 15 | 6 | 2 | 2.5 | 95 | 20 | ISO 8740 - 20 x 95 |
| 20.5 | 15 | 6 | 2 | 2.5 | 100 | 20 | ISO 8740 - 20 x 100 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 26 | 25 | ISO 8740 - 25 x 26 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 28 | 25 | ISO 8740 - 25 x 28 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 30 | 25 | ISO 8740 - 25 x 30 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 32 | 25 | ISO 8740 - 25 x 32 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 35 | 25 | ISO 8740 - 25 x 35 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 40 | 25 | ISO 8740 - 25 x 40 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 45 | 25 | ISO 8740 - 25 x 45 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 50 | 25 | ISO 8740 - 25 x 50 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 55 | 25 | ISO 8740 - 25 x 55 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 60 | 25 | ISO 8740 - 25 x 60 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 65 | 25 | ISO 8740 - 25 x 65 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 70 | 25 | ISO 8740 - 25 x 70 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 75 | 25 | ISO 8740 - 25 x 75 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 80 | 25 | ISO 8740 - 25 x 80 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 85 | 25 | ISO 8740 - 25 x 85 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 90 | 25 | ISO 8740 - 25 x 90 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 95 | 25 | ISO 8740 - 25 x 95 |
| 25.5 | 15 | 7.5 | 2.5 | 3 | 100 | 25 | ISO 8740 - 25 x 100 |
کاتالوگهای مرتبط
تامین کنندگان قطعات صنعتی
نقد و بررسیها
هنوز بررسیای ثبت نشده است.
