ISO 8734

DIN EN ISO 8734

بدون امتیاز

Pins

ژانویه 13, 2025

stdpart

گالری قطعه

گالری قطعه

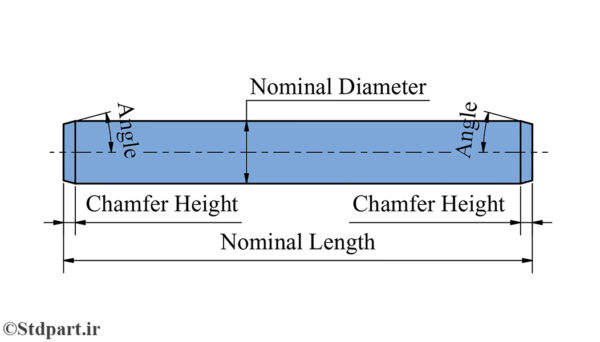

Chamfer Angle [deg]	Chamfer Height [mm]	Nominal Length [mm]	Nominal Diameter [mm]	Part Number
15	0.2	3	1	ISO 8734 - 1 x 3
15	0.2	4	1	ISO 8734 - 1 x 4
15	0.2	5	1	ISO 8734 - 1 x 5
15	0.2	6	1	ISO 8734 - 1 x 6
15	0.2	8	1	ISO 8734 - 1 x 8
15	0.2	10	1	ISO 8734 - 1 x 10
15	0.3	4	1.5	ISO 8734 - 1.5 x 4
15	0.3	5	1.5	ISO 8734 - 1.5 x 5
15	0.3	6	1.5	ISO 8734 - 1.5 x 6
15	0.3	8	1.5	ISO 8734 - 1.5 x 8
15	0.3	10	1.5	ISO 8734 - 1.5 x 10
15	0.3	12	1.5	ISO 8734 - 1.5 x 12
15	0.3	14	1.5	ISO 8734 - 1.5 x 14
15	0.3	16	1.5	ISO 8734 - 1.5 x 16
15	0.35	5	2	ISO 8734 - 2 x 5
15	0.35	6	2	ISO 8734 - 2 x 6
15	0.35	8	2	ISO 8734 - 2 x 8
15	0.35	10	2	ISO 8734 - 2 x 10
15	0.35	12	2	ISO 8734 - 2 x 12
15	0.35	14	2	ISO 8734 - 2 x 14
15	0.35	16	2	ISO 8734 - 2 x 16
15	0.35	18	2	ISO 8734 - 2 x 18
15	0.35	20	2	ISO 8734 - 2 x 20
15	0.4	6	2.5	ISO 8734 - 2.5 x 6
15	0.4	8	2.5	ISO 8734 - 2.5 x 8
15	0.4	10	2.5	ISO 8734 - 2.5 x 10
15	0.4	12	2.5	ISO 8734 - 2.5 x 12
15	0.4	14	2.5	ISO 8734 - 2.5 x 14
15	0.4	16	2.5	ISO 8734 - 2.5 x 16
15	0.4	18	2.5	ISO 8734 - 2.5 x 18
15	0.4	20	2.5	ISO 8734 - 2.5 x 20
15	0.4	22	2.5	ISO 8734 - 2.5 x 22
15	0.4	24	2.5	ISO 8734 - 2.5 x 24
15	0.5	8	3	ISO 8734 - 3 x 8
15	0.5	10	3	ISO 8734 - 3 x 10
15	0.5	12	3	ISO 8734 - 3 x 12
15	0.5	14	3	ISO 8734 - 3 x 14
15	0.5	16	3	ISO 8734 - 3 x 16
15	0.5	18	3	ISO 8734 - 3 x 18
15	0.5	20	3	ISO 8734 - 3 x 20
15	0.5	22	3	ISO 8734 - 3 x 22
15	0.5	24	3	ISO 8734 - 3 x 24
15	0.5	26	3	ISO 8734 - 3 x 26
15	0.5	28	3	ISO 8734 - 3 x 28
15	0.5	30	3	ISO 8734 - 3 x 30
15	0.63	10	4	ISO 8734 - 4 x 10
15	0.63	12	4	ISO 8734 - 4 x 12
15	0.63	14	4	ISO 8734 - 4 x 14
15	0.63	16	4	ISO 8734 - 4 x 16
15	0.63	18	4	ISO 8734 - 4 x 18
15	0.63	20	4	ISO 8734 - 4 x 20
15	0.63	22	4	ISO 8734 - 4 x 22
15	0.63	24	4	ISO 8734 - 4 x 24
15	0.63	26	4	ISO 8734 - 4 x 26
15	0.63	28	4	ISO 8734 - 4 x 28
15	0.63	30	4	ISO 8734 - 4 x 30
15	0.63	32	4	ISO 8734 - 4 x 32
15	0.63	35	4	ISO 8734 - 4 x 35
15	0.63	40	4	ISO 8734 - 4 x 40
15	0.8	12	5	ISO 8734 - 5 x 12
15	0.8	14	5	ISO 8734 - 5 x 14
15	0.8	16	5	ISO 8734 - 5 x 16
15	0.8	18	5	ISO 8734 - 5 x 18
15	0.8	20	5	ISO 8734 - 5 x 20
15	0.8	22	5	ISO 8734 - 5 x 22
15	0.8	24	5	ISO 8734 - 5 x 24
15	0.8	26	5	ISO 8734 - 5 x 26
15	0.8	28	5	ISO 8734 - 5 x 28
15	0.8	30	5	ISO 8734 - 5 x 30
15	0.8	32	5	ISO 8734 - 5 x 32
15	0.8	35	5	ISO 8734 - 5 x 35
15	0.8	40	5	ISO 8734 - 5 x 40
15	0.8	45	5	ISO 8734 - 5 x 45
15	0.8	50	5	ISO 8734 - 5 x 50
15	1.7	55	5	ISO 8734 - 5 x 55
15	1.7	60	5	ISO 8734 - 5 x 60
15	1.2	14	6	ISO 8734 - 6 x 14
15	1.2	16	6	ISO 8734 - 6 x 16
15	1.2	18	6	ISO 8734 - 6 x 18
15	1.2	20	6	ISO 8734 - 6 x 20
15	1.2	22	6	ISO 8734 - 6 x 22
15	1.2	24	6	ISO 8734 - 6 x 24
15	1.2	26	6	ISO 8734 - 6 x 26
15	1.2	28	6	ISO 8734 - 6 x 28
15	1.2	30	6	ISO 8734 - 6 x 30
15	1.2	32	6	ISO 8734 - 6 x 32
15	1.2	35	6	ISO 8734 - 6 x 35
15	1.2	40	6	ISO 8734 - 6 x 40
15	1.2	45	6	ISO 8734 - 6 x 45
15	1.2	50	6	ISO 8734 - 6 x 50
15	1.2	55	6	ISO 8734 - 6 x 55
15	1.2	60	6	ISO 8734 - 6 x 60
15	2.1	65	6	ISO 8734 - 6 x 65
15	2.1	70	6	ISO 8734 - 6 x 70
15	2.1	75	6	ISO 8734 - 6 x 75
15	2.1	80	6	ISO 8734 - 6 x 80
15	1.6	18	8	ISO 8734 - 8 x 18
15	1.6	20	8	ISO 8734 - 8 x 20
15	1.6	22	8	ISO 8734 - 8 x 22
15	1.6	24	8	ISO 8734 - 8 x 24
15	1.6	26	8	ISO 8734 - 8 x 26
15	1.6	28	8	ISO 8734 - 8 x 28
15	1.6	30	8	ISO 8734 - 8 x 30
15	1.6	32	8	ISO 8734 - 8 x 32
15	1.6	35	8	ISO 8734 - 8 x 35
15	1.6	40	8	ISO 8734 - 8 x 40
15	1.6	45	8	ISO 8734 - 8 x 45
15	1.6	50	8	ISO 8734 - 8 x 50
15	1.6	55	8	ISO 8734 - 8 x 55
15	1.6	60	8	ISO 8734 - 8 x 60
15	1.6	65	8	ISO 8734 - 8 x 65
15	1.6	70	8	ISO 8734 - 8 x 70
15	1.6	75	8	ISO 8734 - 8 x 75
15	1.6	80	8	ISO 8734 - 8 x 80
15	2.6	85	8	ISO 8734 - 8 x 85
15	2.6	90	8	ISO 8734 - 8 x 90
15	2.6	95	8	ISO 8734 - 8 x 95
15	2.6	100	8	ISO 8734 - 8 x 100
15	2.6	120	8	ISO 8734 - 8 x 120
15	2.6	140	8	ISO 8734 - 8 x 140
15	2.6	160	8	ISO 8734 - 8 x 160
15	2.6	180	8	ISO 8734 - 8 x 180
15	2.6	200	8	ISO 8734 - 8 x 200
15	2	22	10	ISO 8734 - 10 x 22
15	2	24	10	ISO 8734 - 10 x 24
15	2	26	10	ISO 8734 - 10 x 26
15	2	28	10	ISO 8734 - 10 x 28
15	2	30	10	ISO 8734 - 10 x 30
15	2	32	10	ISO 8734 - 10 x 32
15	2	35	10	ISO 8734 - 10 x 35
15	2	40	10	ISO 8734 - 10 x 40
15	2	45	10	ISO 8734 - 10 x 45
15	2	50	10	ISO 8734 - 10 x 50
15	2	55	10	ISO 8734 - 10 x 55
15	2	60	10	ISO 8734 - 10 x 60
15	2	65	10	ISO 8734 - 10 x 65
15	2	70	10	ISO 8734 - 10 x 70
15	2	75	10	ISO 8734 - 10 x 75
15	2	80	10	ISO 8734 - 10 x 80
15	2	85	10	ISO 8734 - 10 x 85
15	2	90	10	ISO 8734 - 10 x 90
15	2	95	10	ISO 8734 - 10 x 95
15	2	100	10	ISO 8734 - 10 x 100
15	3	120	10	ISO 8734 - 10 x 120
15	3	140	10	ISO 8734 - 10 x 140
15	3	160	10	ISO 8734 - 10 x 160
15	3	180	10	ISO 8734 - 10 x 180
15	3	200	10	ISO 8734 - 10 x 200
15	2.5	26	12	ISO 8734 - 12 x 26
15	2.5	28	12	ISO 8734 - 12 x 28
15	2.5	30	12	ISO 8734 - 12 x 30
15	2.5	32	12	ISO 8734 - 12 x 32
15	2.5	35	12	ISO 8734 - 12 x 35
15	2.5	40	12	ISO 8734 - 12 x 40
15	2.5	45	12	ISO 8734 - 12 x 45
15	2.5	50	12	ISO 8734 - 12 x 50
15	2.5	55	12	ISO 8734 - 12 x 55
15	2.5	60	12	ISO 8734 - 12 x 60
15	2.5	65	12	ISO 8734 - 12 x 65
15	2.5	70	12	ISO 8734 - 12 x 70
15	2.5	75	12	ISO 8734 - 12 x 75
15	2.5	80	12	ISO 8734 - 12 x 80
15	2.5	85	12	ISO 8734 - 12 x 85
15	2.5	90	12	ISO 8734 - 12 x 90
15	2.5	95	12	ISO 8734 - 12 x 95
15	2.5	100	12	ISO 8734 - 12 x 100
15	3.8	120	12	ISO 8734 - 12 x 120
15	3.8	140	12	ISO 8734 - 12 x 140
15	3.8	160	12	ISO 8734 - 12 x 160
15	3.8	180	12	ISO 8734 - 12 x 180
15	3.8	200	12	ISO 8734 - 12 x 200
15	3	40	16	ISO 8734 - 16 x 40
15	3	45	16	ISO 8734 - 16 x 45
15	3	50	16	ISO 8734 - 16 x 50
15	3	55	16	ISO 8734 - 16 x 55
15	3	60	16	ISO 8734 - 16 x 60
15	3	65	16	ISO 8734 - 16 x 65
15	3	70	16	ISO 8734 - 16 x 70
15	3	75	16	ISO 8734 - 16 x 75
15	3	80	16	ISO 8734 - 16 x 80
15	3	85	16	ISO 8734 - 16 x 85
15	3	90	16	ISO 8734 - 16 x 90
15	3	95	16	ISO 8734 - 16 x 95
15	3	100	16	ISO 8734 - 16 x 100
15	4.6	120	16	ISO 8734 - 16 x 120
15	4.6	140	16	ISO 8734 - 16 x 140
15	4.6	160	16	ISO 8734 - 16 x 160
15	4.6	180	16	ISO 8734 - 16 x 180
15	4.6	200	16	ISO 8734 - 16 x 200
15	3.5	50	20	ISO 8734 - 20 x 50
15	3.5	55	20	ISO 8734 - 20 x 55
15	3.5	60	20	ISO 8734 - 20 x 60
15	3.5	65	20	ISO 8734 - 20 x 65
15	3.5	70	20	ISO 8734 - 20 x 70
15	3.5	75	20	ISO 8734 - 20 x 75
15	3.5	80	20	ISO 8734 - 20 x 80
15	3.5	85	20	ISO 8734 - 20 x 85
15	3.5	90	20	ISO 8734 - 20 x 90
15	3.5	95	20	ISO 8734 - 20 x 95
15	3.5	100	20	ISO 8734 - 20 x 100
15	6	120	20	ISO 8734 - 20 x 120
15	6	140	20	ISO 8734 - 20 x 140
15	6	160	20	ISO 8734 - 20 x 160
15	6	180	20	ISO 8734 - 20 x 180
15	6	200	20	ISO 8734 - 20 x 200
