ISO 1482-C

بدون امتیاز

Bolts

نوامبر 30, 2024

stdpart

گالری قطعه

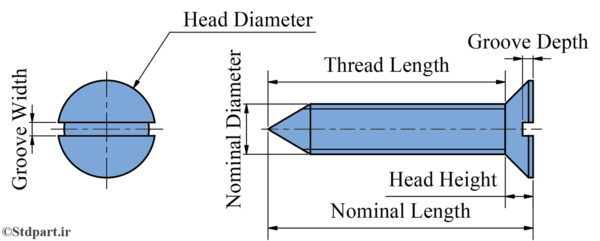

جدول مشخصات پیچ ورق سر خزینه دو سو مطابق ISO 1482


Grip Length [mm]	Shank Diameter [mm]	Groove Width [mm]	Groove Depth [mm]	Head Height [mm]	Head Diameter [mm]	Thread Length [mm]	Pitch Diameter [mm]	Pitch [mm]	Nominal Length [mm]	Nominal Diameter [mm]	Part Number
1.1	2.2	0.5	0.4	1.1	3.8	3.4	1.63	0.8	4.5	2.2	ISO 1482 - ST 2.2 x 4.5 - C
1.1	2.2	0.5	0.4	1.1	3.8	5.4	1.63	0.8	6.5	2.2	ISO 1482 - ST 2.2 x 6.5 - C
1.1	2.2	0.5	0.4	1.1	3.8	8.4	1.63	0.8	9.5	2.2	ISO 1482 - ST 2.2 x 9.5 - C
1.1	2.2	0.5	0.4	1.1	3.8	11.9	1.63	0.8	13	2.2	ISO 1482 - ST 2.2 x 13 - C
1.1	2.2	0.5	0.4	1.1	3.8	14.9	1.63	0.8	16	2.2	ISO 1482 - ST 2.2 x 16 - C
1.7	2.9	0.8	0.6	1.7	5.5	4.8	2.18	1.1	6.5	2.9	ISO 1482 - ST 2.9 x 6.5 - C
1.7	2.9	0.8	0.6	1.7	5.5	7.8	2.18	1.1	9.5	2.9	ISO 1482 - ST 2.9 x 9.5 - C
1.7	2.9	0.8	0.6	1.7	5.5	11.3	2.18	1.1	13	2.9	ISO 1482 - ST 2.9 x 13 - C
1.7	2.9	0.8	0.6	1.7	5.5	14.3	2.18	1.1	16	2.9	ISO 1482 - ST 2.9 x 16 - C
1.7	2.9	0.8	0.6	1.7	5.5	17.3	2.18	1.1	19	2.9	ISO 1482 - ST 2.9 x 19 - C
2.35	3.5	1	0.9	2.35	7.3	7.15	2.64	1.3	9.5	3.5	ISO 1482 - ST 3.5 x 9.5 - C
2.35	3.5	1	0.9	2.35	7.3	10.65	2.64	1.3	13	3.5	ISO 1482 - ST 3.5 x 13 - C
2.35	3.5	1	0.9	2.35	7.3	13.65	2.64	1.3	16	3.5	ISO 1482 - ST 3.5 x 16 - C
2.35	3.5	1	0.9	2.35	7.3	16.65	2.64	1.3	19	3.5	ISO 1482 - ST 3.5 x 19 - C
2.35	3.5	1	0.9	2.35	7.3	19.65	2.64	1.3	22	3.5	ISO 1482 - ST 3.5 x 22 - C
2.35	3.5	1	0.9	2.35	7.3	22.65	2.64	1.3	25	3.5	ISO 1482 - ST 3.5 x 25 - C
2.6	4.2	1.2	1	2.6	8.4	6.9	3.1	1.4	9.5	4.2	ISO 1482 - ST 4.2 x 9.5 - C
2.6	4.2	1.2	1	2.6	8.4	10.4	3.1	1.4	13	4.2	ISO 1482 - ST 4.2 x 13 - C
2.6	4.2	1.2	1	2.6	8.4	13.4	3.1	1.4	16	4.2	ISO 1482 - ST 4.2 x 16 - C
2.6	4.2	1.2	1	2.6	8.4	16.4	3.1	1.4	19	4.2	ISO 1482 - ST 4.2 x 19 - C
2.6	4.2	1.2	1	2.6	8.4	19.4	3.1	1.4	22	4.2	ISO 1482 - ST 4.2 x 22 - C
2.6	4.2	1.2	1	2.6	8.4	22.4	3.1	1.4	25	4.2	ISO 1482 - ST 4.2 x 25 - C
2.6	4.2	1.2	1	2.6	8.4	29.4	3.1	1.4	32	4.2	ISO 1482 - ST 4.2 x 32 - C
2.8	4.8	1.2	1.1	2.8	9.3	6.7	3.58	1.6	9.5	4.8	ISO 1482 - ST 4.8 x 9.5 - C
2.8	4.8	1.2	1.1	2.8	9.3	10.2	3.58	1.6	13	4.8	ISO 1482 - ST 4.8 x 13 - C
2.8	4.8	1.2	1.1	2.8	9.3	13.2	3.58	1.6	16	4.8	ISO 1482 - ST 4.8 x 16 - C
2.8	4.8	1.2	1.1	2.8	9.3	16.2	3.58	1.6	19	4.8	ISO 1482 - ST 4.8 x 19 - C
2.8	4.8	1.2	1.1	2.8	9.3	19.2	3.58	1.6	22	4.8	ISO 1482 - ST 4.8 x 22 - C
2.8	4.8	1.2	1.1	2.8	9.3	22.2	3.58	1.6	25	4.8	ISO 1482 - ST 4.8 x 25 - C
2.8	4.8	1.2	1.1	2.8	9.3	29.2	3.58	1.6	32	4.8	ISO 1482 - ST 4.8 x 32 - C
3	5.5	1.6	1.1	3	10.3	10	4.17	1.8	13	5.5	ISO 1482 - ST 5.5 x 13 - C
3	5.5	1.6	1.1	3	10.3	13	4.17	1.8	16	5.5	ISO 1482 - ST 5.5 x 16 - C
3	5.5	1.6	1.1	3	10.3	16	4.17	1.8	19	5.5	ISO 1482 - ST 5.5 x 19 - C
3	5.5	1.6	1.1	3	10.3	19	4.17	1.8	22	5.5	ISO 1482 - ST 5.5 x 22 - C
3	5.5	1.6	1.1	3	10.3	22	4.17	1.8	25	5.5	ISO 1482 - ST 5.5 x 25 - C
3	5.5	1.6	1.1	3	10.3	29	4.17	1.8	32	5.5	ISO 1482 - ST 5.5 x 32 - C
3	5.5	1.6	1.1	3	10.3	35	4.17	1.8	38	5.5	ISO 1482 - ST 5.5 x 38 - C
3.15	6.3	1.6	1.2	3.15	11.3	9.85	4.88	1.8	13	6.3	ISO 1482 - ST 6.3 x 13 - C
3.15	6.3	1.6	1.2	3.15	11.3	12.85	4.88	1.8	16	6.3	ISO 1482 - ST 6.3 x 16 - C
3.15	6.3	1.6	1.2	3.15	11.3	15.85	4.88	1.8	19	6.3	ISO 1482 - ST 6.3 x 19 - C
3.15	6.3	1.6	1.2	3.15	11.3	18.85	4.88	1.8	22	6.3	ISO 1482 - ST 6.3 x 22 - C
3.15	6.3	1.6	1.2	3.15	11.3	21.85	4.88	1.8	25	6.3	ISO 1482 - ST 6.3 x 25 - C
3.15	6.3	1.6	1.2	3.15	11.3	28.85	4.88	1.8	32	6.3	ISO 1482 - ST 6.3 x 32 - C
3.15	6.3	1.6	1.2	3.15	11.3	34.85	4.88	1.8	38	6.3	ISO 1482 - ST 6.3 x 38 - C
4.65	8	2	1.8	4.65	15.8	11.35	6.2	2.1	16	8	ISO 1482 - ST 8 x 16 - C
4.65	8	2	1.8	4.65	15.8	14.35	6.2	2.1	19	8	ISO 1482 - ST 8 x 19 - C
4.65	8	2	1.8	4.65	15.8	17.35	6.2	2.1	22	8	ISO 1482 - ST 8 x 22 - C
4.65	8	2	1.8	4.65	15.8	20.35	6.2	2.1	25	8	ISO 1482 - ST 8 x 25 - C
4.65	8	2	1.8	4.65	15.8	27.35	6.2	2.1	32	8	ISO 1482 - ST 8 x 32 - C
4.65	8	2	1.8	4.65	15.8	33.35	6.2	2.1	38	8	ISO 1482 - ST 8 x 38 - C
4.65	8	2	1.8	4.65	15.8	40.35	6.2	2.1	45	8	ISO 1482 - ST 8 x 45 - C
4.65	8	2	1.8	4.65	15.8	45.35	6.2	2.1	50	8	ISO 1482 - ST 8 x 50 - C
5.25	9.5	2.5	2	5.25	18.3	13.75	7.85	2.1	19	9.5	ISO 1482 - ST 9.5 x 19 - C
5.25	9.5	2.5	2	5.25	18.3	16.75	7.85	2.1	22	9.5	ISO 1482 - ST 9.5 x 22 - C
5.25	9.5	2.5	2	5.25	18.3	19.75	7.85	2.1	25	9.5	ISO 1482 - ST 9.5 x 25 - C
5.25	9.5	2.5	2	5.25	18.3	26.75	7.85	2.1	32	9.5	ISO 1482 - ST 9.5 x 32 - C
5.25	9.5	2.5	2	5.25	18.3	32.75	7.85	2.1	38	9.5	ISO 1482 - ST 9.5 x 38 - C
5.25	9.5	2.5	2	5.25	18.3	39.75	7.85	2.1	45	9.5	ISO 1482 - ST 9.5 x 45 - C
5.25	9.5	2.5	2	5.25	18.3	44.75	7.85	2.1	50	9.5	ISO 1482 - ST 9.5 x 50 - C
