DIN 3760 – AS

کاسه نمد DIN 3760 - AS

بدون امتیاز

Shaft Seal

دسامبر 4, 2024

stdpart

گالری قطعه

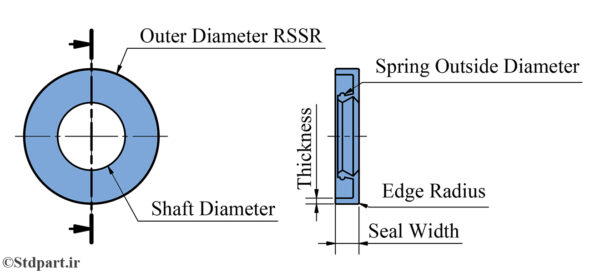

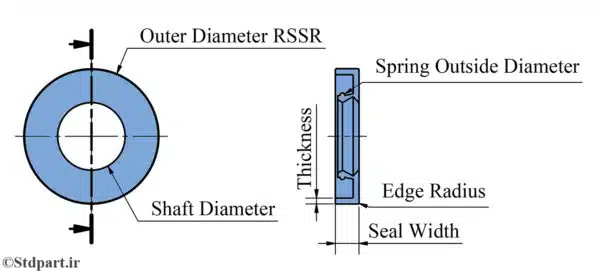

جدول مشخصات کاسه نمد فرم AS مطابق DIN 3760


Spring Inside Diameter [mm]	Spring Outside Diameter [mm]	Thickness [mm]	Edge Radius [mm]	Seal Width [mm]	Outer Diameter RSSR [mm]	Shaft Diameter [mm]	Part Number
0.91	1.4	1.75	0.3	7	16	6	DIN 3760 - AS - 6 x 16 x 7 - NBR
0.91	1.4	1.75	0.3	7	22	6	DIN 3760 - AS - 6 x 22 x 7 - NBR
0.91	1.4	1.75	0.3	7	22	7	DIN 3760 - AS - 7 x 22 x 7 - NBR
0.91	1.4	1.75	0.3	7	22	8	DIN 3760 - AS - 8 x 22 x 7 - NBR
0.91	1.4	1.75	0.3	7	24	8	DIN 3760 - AS - 8 x 24 x 7 - NBR
0.91	1.4	1.75	0.3	7	22	9	DIN 3760 - AS - 9 x 22 x 7 - NBR
0.91	1.4	1.75	0.3	7	24	9	DIN 3760 - AS - 9 x 24 x 7 - NBR
0.91	1.4	1.75	0.3	7	26	9	DIN 3760 - AS - 9 x 26 x 7 - NBR
0.91	1.4	1.75	0.3	7	22	10	DIN 3760 - AS - 10 x 22 x 7 - NBR
0.91	1.4	1.75	0.3	7	24	10	DIN 3760 - AS - 10 x 24 x 7 - NBR
0.91	1.4	1.75	0.3	7	26	10	DIN 3760 - AS - 10 x 26 x 7 - NBR
0.91	1.4	1.75	0.3	7	22	11	DIN 3760 - AS - 11 x 22 x 7 - NBR
0.91	1.4	1.75	0.3	7	26	11	DIN 3760 - AS - 11 x 26 x 7 - NBR
0.91	1.4	1.75	0.3	7	22	12	DIN 3760 - AS - 12 x 22 x 7 - NBR
0.91	1.4	1.75	0.3	7	24	12	DIN 3760 - AS - 12 x 24 x 7 - NBR
0.91	1.4	1.75	0.3	7	28	12	DIN 3760 - AS - 12 x 28 x 7 - NBR
0.91	1.4	1.75	0.3	7	30	12	DIN 3760 - AS - 12 x 30 x 7 - NBR
0.91	1.4	1.75	0.3	7	24	14	DIN 3760 - AS - 14 x 24 x 7 - NBR
0.91	1.4	1.75	0.3	7	28	14	DIN 3760 - AS - 14 x 28 x 7 - NBR
0.91	1.4	1.75	0.3	7	30	14	DIN 3760 - AS - 14 x 30 x 7 - NBR
0.91	1.4	1.75	0.3	7	35	14	DIN 3760 - AS - 14 x 35 x 7 - NBR
0.91	1.4	1.75	0.3	7	26	15	DIN 3760 - AS - 15 x 26 x 7 - NBR
0.91	1.4	1.75	0.3	7	30	15	DIN 3760 - AS - 15 x 30 x 7 - NBR
0.91	1.4	1.75	0.3	7	32	15	DIN 3760 - AS - 15 x 32 x 7 - NBR
0.91	1.4	1.75	0.3	7	35	15	DIN 3760 - AS - 15 x 35 x 7 - NBR
0.91	1.4	1.75	0.3	7	28	16	DIN 3760 - AS - 16 x 28 x 7 - NBR
0.91	1.4	1.75	0.3	7	30	16	DIN 3760 - AS - 16 x 30 x 7 - NBR
0.91	1.4	1.75	0.3	7	32	16	DIN 3760 - AS - 16 x 32 x 7 - NBR
0.91	1.4	1.75	0.3	7	35	16	DIN 3760 - AS - 16 x 35 x 7 - NBR
0.91	1.4	1.75	0.3	7	28	17	DIN 3760 - AS - 17 x 28 x 7 - NBR
0.91	1.4	1.75	0.3	7	30	17	DIN 3760 - AS - 17 x 30 x 7 - NBR
0.91	1.4	1.75	0.3	7	32	17	DIN 3760 - AS - 17 x 32 x 7 - NBR
0.91	1.4	1.75	0.3	7	35	17	DIN 3760 - AS - 17 x 35 x 7 - NBR
0.91	1.4	1.75	0.3	7	40	17	DIN 3760 - AS - 17 x 40 x 7 - NBR
0.91	1.4	1.75	0.3	7	30	18	DIN 3760 - AS - 18 x 30 x 7 - NBR
0.91	1.4	1.75	0.3	7	32	18	DIN 3760 - AS - 18 x 32 x 7 - NBR
0.91	1.4	1.75	0.3	7	35	18	DIN 3760 - AS - 18 x 35 x 7 - NBR
0.91	1.4	1.75	0.3	7	40	18	DIN 3760 - AS - 18 x 40 x 7 - NBR
0.91	1.4	1.75	0.3	7	30	20	DIN 3760 - AS - 20 x 30 x 7 - NBR
0.91	1.4	1.75	0.3	7	32	20	DIN 3760 - AS - 20 x 32 x 7 - NBR
0.91	1.4	1.75	0.3	7	35	20	DIN 3760 - AS - 20 x 35 x 7 - NBR
0.91	1.4	1.75	0.3	7	40	20	DIN 3760 - AS - 20 x 40 x 7 - NBR
0.91	1.4	1.75	0.3	7	47	20	DIN 3760 - AS - 20 x 47 x 7 - NBR
0.91	1.4	1.75	0.3	7	32	22	DIN 3760 - AS - 22 x 32 x 7 - NBR
0.91	1.4	1.75	0.3	7	35	22	DIN 3760 - AS - 22 x 35 x 7 - NBR
0.91	1.4	1.75	0.3	7	40	22	DIN 3760 - AS - 22 x 40 x 7 - NBR
0.91	1.4	1.75	0.3	7	47	22	DIN 3760 - AS - 22 x 47 x 7 - NBR
0.91	1.4	1.75	0.3	7	35	24	DIN 3760 - AS - 24 x 35 x 7 - NBR
0.91	1.4	1.75	0.3	7	37	24	DIN 3760 - AS - 24 x 37 x 7 - NBR
0.91	1.4	1.75	0.3	7	40	24	DIN 3760 - AS - 24 x 40 x 7 - NBR
0.91	1.4	1.75	0.3	7	47	24	DIN 3760 - AS - 24 x 47 x 7 - NBR
0.91	1.4	1.75	0.3	7	35	25	DIN 3760 - AS - 25 x 35 x 7 - NBR
0.91	1.4	1.75	0.3	7	40	25	DIN 3760 - AS - 25 x 40 x 7 - NBR
0.91	1.4	1.75	0.3	7	42	25	DIN 3760 - AS - 25 x 42 x 7 - NBR
0.91	1.4	1.75	0.3	7	47	25	DIN 3760 - AS - 25 x 47 x 7 - NBR
0.91	1.4	1.75	0.3	7	52	25	DIN 3760 - AS - 25 x 52 x 7 - NBR
0.91	1.4	1.75	0.3	7	37	26	DIN 3760 - AS - 26 x 37 x 7 - NBR
0.91	1.4	1.75	0.3	7	42	26	DIN 3760 - AS - 26 x 42 x 7 - NBR
0.91	1.4	1.75	0.3	7	47	26	DIN 3760 - AS - 26 x 47 x 7 - NBR
0.91	1.4	1.75	0.4	7	40	28	DIN 3760 - AS - 28 x 40 x 7 - NBR
0.91	1.4	1.75	0.4	7	47	28	DIN 3760 - AS - 28 x 47 x 7 - NBR
0.91	1.4	1.75	0.4	7	52	28	DIN 3760 - AS - 28 x 52 x 7 - NBR
0.91	1.4	1.75	0.4	7	40	30	DIN 3760 - AS - 30 x 40 x 7 - NBR
0.91	1.4	1.75	0.4	7	42	30	DIN 3760 - AS - 30 x 42 x 7 - NBR
0.91	1.4	1.75	0.4	7	47	30	DIN 3760 - AS - 30 x 47 x 7 - NBR
0.91	1.4	1.75	0.4	7	52	30	DIN 3760 - AS - 30 x 52 x 7 - NBR
0.91	1.4	1.75	0.4	7	62	30	DIN 3760 - AS - 30 x 62 x 7 - NBR
0.91	1.4	1.75	0.4	7	45	32	DIN 3760 - AS - 32 x 45 x 7 - NBR
0.91	1.4	1.75	0.4	7	47	32	DIN 3760 - AS - 32 x 47 x 7 - NBR
0.91	1.4	1.75	0.4	7	52	32	DIN 3760 - AS - 32 x 52 x 7 - NBR
0.91	1.4	1.75	0.4	7	47	35	DIN 3760 - AS - 35 x 47 x 7 - NBR
0.91	1.4	1.75	0.4	7	50	35	DIN 3760 - AS - 35 x 50 x 7 - NBR
0.91	1.4	1.75	0.4	7	52	35	DIN 3760 - AS - 35 x 52 x 7 - NBR
0.91	1.4	1.75	0.4	7	62	35	DIN 3760 - AS - 35 x 62 x 7 - NBR
0.91	1.4	1.75	0.4	7	47	36	DIN 3760 - AS - 36 x 47 x 7 - NBR
0.91	1.4	1.75	0.4	7	50	36	DIN 3760 - AS - 36 x 50 x 7 - NBR
0.91	1.4	1.75	0.4	7	52	36	DIN 3760 - AS - 36 x 52 x 7 - NBR
0.91	1.4	1.75	0.4	7	62	36	DIN 3760 - AS - 36 x 62 x 7 - NBR
0.91	1.4	1.75	0.4	7	52	38	DIN 3760 - AS - 38 x 52 x 7 - NBR
0.91	1.4	1.75	0.4	7	55	38	DIN 3760 - AS - 38 x 55 x 7 - NBR
0.91	1.4	1.75	0.4	7	62	38	DIN 3760 - AS - 38 x 62 x 7 - NBR
0.91	1.4	1.75	0.4	7	52	40	DIN 3760 - AS - 40 x 52 x 7 - NBR
0.91	1.4	1.75	0.4	7	55	40	DIN 3760 - AS - 40 x 55 x 7 - NBR
0.91	1.4	1.75	0.4	7	62	40	DIN 3760 - AS - 40 x 62 x 7 - NBR
0.91	1.4	1.75	0.4	7	72	40	DIN 3760 - AS - 40 x 72 x 7 - NBR
1.04	1.6	2	0.4	8	55	42	DIN 3760 - AS - 42 x 55 x 8 - NBR
1.04	1.6	2	0.4	8	62	42	DIN 3760 - AS - 42 x 62 x 8 - NBR
1.04	1.6	2	0.4	8	72	42	DIN 3760 - AS - 42 x 72 x 8 - NBR
1.04	1.6	2	0.4	8	60	45	DIN 3760 - AS - 45 x 60 x 8 - NBR
1.04	1.6	2	0.4	8	62	45	DIN 3760 - AS - 45 x 62 x 8 - NBR
1.04	1.6	2	0.4	8	65	45	DIN 3760 - AS - 45 x 65 x 8 - NBR
1.04	1.6	2	0.4	8	72	45	DIN 3760 - AS - 45 x 72 x 8 - NBR
1.04	1.6	2	0.4	8	62	48	DIN 3760 - AS - 48 x 62 x 8 - NBR
1.04	1.6	2	0.4	8	72	48	DIN 3760 - AS - 48 x 72 x 8 - NBR
1.04	1.6	2	0.4	8	65	50	DIN 3760 - AS - 50 x 65 x 8 - NBR
1.04	1.6	2	0.4	8	68	50	DIN 3760 - AS - 50 x 68 x 8 - NBR
1.04	1.6	2	0.4	8	72	50	DIN 3760 - AS - 50 x 72 x 8 - NBR
1.04	1.6	2	0.4	8	80	50	DIN 3760 - AS - 50 x 80 x 8 - NBR
1.04	1.6	2	0.4	8	68	52	DIN 3760 - AS - 52 x 68 x 8 - NBR
1.04	1.6	2	0.4	8	72	52	DIN 3760 - AS - 52 x 72 x 8 - NBR
1.04	1.6	2	0.4	8	70	55	DIN 3760 - AS - 55 x 70 x 8 - NBR
1.04	1.6	2	0.4	8	72	55	DIN 3760 - AS - 55 x 72 x 8 - NBR
1.04	1.6	2	0.4	8	80	55	DIN 3760 - AS - 55 x 80 x 8 - NBR
1.04	1.6	2	0.4	8	85	55	DIN 3760 - AS - 55 x 85 x 8 - NBR
1.04	1.6	2	0.4	8	70	56	DIN 3760 - AS - 56 x 70 x 8 - NBR
1.04	1.6	2	0.4	8	72	56	DIN 3760 - AS - 56 x 72 x 8 - NBR
1.04	1.6	2	0.4	8	80	56	DIN 3760 - AS - 56 x 80 x 8 - NBR
1.04	1.6	2	0.4	8	85	56	DIN 3760 - AS - 56 x 85 x 8 - NBR
1.04	1.6	2	0.4	8	72	58	DIN 3760 - AS - 58 x 72 x 8 - NBR
1.04	1.6	2	0.4	8	80	58	DIN 3760 - AS - 58 x 80 x 8 - NBR
1.04	1.6	2	0.4	8	75	60	DIN 3760 - AS - 60 x 75 x 8 - NBR
1.04	1.6	2	0.4	8	80	60	DIN 3760 - AS - 60 x 80 x 8 - NBR
1.04	1.6	2	0.4	8	85	60	DIN 3760 - AS - 60 x 85 x 8 - NBR
1.04	1.6	2	0.4	8	90	60	DIN 3760 - AS - 60 x 90 x 8 - NBR
1.3	2	2.5	0.5	10	85	62	DIN 3760 - AS - 62 x 85 x 10 - NBR
1.3	2	2.5	0.5	10	90	62	DIN 3760 - AS - 62 x 90 x 10 - NBR
1.3	2	2.5	0.5	10	85	63	DIN 3760 - AS - 63 x 85 x 10 - NBR
1.3	2	2.5	0.5	10	90	63	DIN 3760 - AS - 63 x 90 x 10 - NBR
1.3	2	2.5	0.5	10	85	65	DIN 3760 - AS - 65 x 85 x 10 - NBR
1.3	2	2.5	0.5	10	90	65	DIN 3760 - AS - 65 x 90 x 10 - NBR
1.3	2	2.5	0.5	10	100	65	DIN 3760 - AS - 65 x 100 x 10 - NBR
1.3	2	2.5	0.5	10	90	68	DIN 3760 - AS - 68 x 90 x 10 - NBR
1.3	2	2.5	0.5	10	100	68	DIN 3760 - AS - 68 x 100 x 10 - NBR
1.3	2	2.5	0.5	10	90	70	DIN 3760 - AS - 70 x 90 x 10 - NBR
1.3	2	2.5	0.5	10	100	70	DIN 3760 - AS - 70 x 100 x 10 - NBR
1.3	2	2.5	0.5	10	95	72	DIN 3760 - AS - 72 x 95 x 10 - NBR
1.3	2	2.5	0.5	10	100	72	DIN 3760 - AS - 72 x 100 x 10 - NBR
1.3	2	2.5	0.5	10	95	75	DIN 3760 - AS - 75 x 95 x 10 - NBR
1.3	2	2.5	0.5	10	100	75	DIN 3760 - AS - 75 x 100 x 10 - NBR
1.3	2	2.5	0.5	10	100	78	DIN 3760 - AS - 78 x 100 x 10 - NBR
1.3	2	2.5	0.5	10	100	80	DIN 3760 - AS - 80 x 100 x 10 - NBR
1.3	2	2.5	0.5	10	110	80	DIN 3760 - AS - 80 x 110 x 10 - NBR
1.56	2.4	3	0.8	12	110	85	DIN 3760 - AS - 85 x 110 x 12 - NBR
1.56	2.4	3	0.8	12	120	85	DIN 3760 - AS - 85 x 120 x 12 - NBR
1.56	2.4	3	0.8	12	110	90	DIN 3760 - AS - 90 x 110 x 12 - NBR
1.56	2.4	3	0.8	12	120	90	DIN 3760 - AS - 90 x 120 x 12 - NBR
1.56	2.4	3	0.8	12	120	95	DIN 3760 - AS - 95 x 120 x 12 - NBR
1.56	2.4	3	0.8	12	125	95	DIN 3760 - AS - 95 x 125 x 12 - NBR
1.56	2.4	3	0.8	12	120	100	DIN 3760 - AS - 100 x 120 x 12 - NBR
1.56	2.4	3	0.8	12	125	100	DIN 3760 - AS - 100 x 125 x 12 - NBR
1.56	2.4	3	0.8	12	130	100	DIN 3760 - AS - 100 x 130 x 12 - NBR
1.56	2.4	3	0.8	12	130	105	DIN 3760 - AS - 105 x 130 x 12 - NBR
1.56	2.4	3	0.8	12	140	105	DIN 3760 - AS - 105 x 140 x 12 - NBR
1.56	2.4	3	0.8	12	130	110	DIN 3760 - AS - 110 x 130 x 12 - NBR
1.56	2.4	3	0.8	12	140	110	DIN 3760 - AS - 110 x 140 x 12 - NBR
1.56	2.4	3	0.8	12	140	115	DIN 3760 - AS - 115 x 140 x 12 - NBR
1.56	2.4	3	0.8	12	150	115	DIN 3760 - AS - 115 x 150 x 12 - NBR
1.56	2.4	3	0.8	12	150	120	DIN 3760 - AS - 120 x 150 x 12 - NBR
1.56	2.4	3	0.8	12	160	120	DIN 3760 - AS - 120 x 160 x 12 - NBR
1.56	2.4	3	0.8	12	150	125	DIN 3760 - AS - 125 x 150 x 12 - NBR
1.56	2.4	3	0.8	12	160	125	DIN 3760 - AS - 125 x 160 x 12 - NBR
1.56	2.4	3	0.8	12	160	130	DIN 3760 - AS - 130 x 160 x 12 - NBR
1.56	2.4	3	0.8	12	170	130	DIN 3760 - AS - 130 x 170 x 12 - NBR
1.56	2.4	3	0.8	12	170	135	DIN 3760 - AS - 135 x 170 x 12 - NBR
1.95	3	3.75	1	15	170	140	DIN 3760 - AS - 140 x 170 x 15 - NBR
1.95	3	3.75	1	15	175	145	DIN 3760 - AS - 145 x 175 x 15 - NBR
1.95	3	3.75	1	15	180	150	DIN 3760 - AS - 150 x 180 x 15 - NBR
1.95	3	3.75	1	15	190	160	DIN 3760 - AS - 160 x 190 x 15 - NBR
1.95	3	3.75	1	15	200	170	DIN 3760 - AS - 170 x 200 x 15 - NBR
1.95	3	3.75	1	15	210	180	DIN 3760 - AS - 180 x 210 x 15 - NBR
1.95	3	3.75	1	15	220	190	DIN 3760 - AS - 190 x 220 x 15 - NBR
1.95	3	3.75	1	15	230	200	DIN 3760 - AS - 200 x 230 x 15 - NBR
1.95	3	3.75	1	15	240	210	DIN 3760 - AS - 210 x 240 x 15 - NBR
1.95	3	3.75	1	15	250	220	DIN 3760 - AS - 220 x 250 x 15 - NBR
1.95	3	3.75	1	15	260	230	DIN 3760 - AS - 230 x 260 x 15 - NBR
1.95	3	3.75	1	15	270	240	DIN 3760 - AS - 240 x 270 x 15 - NBR
1.95	3	3.75	1	15	280	250	DIN 3760 - AS - 250 x 280 x 15 - NBR
2.6	4	5	1	20	300	260	DIN 3760 - AS - 260 x 300 x 20 - NBR
2.6	4	5	1	20	320	280	DIN 3760 - AS - 280 x 320 x 20 - NBR
2.6	4	5	1	20	340	300	DIN 3760 - AS - 300 x 340 x 20 - NBR
2.6	4	5	1	20	360	320	DIN 3760 - AS - 320 x 360 x 20 - NBR
2.6	4	5	1	20	380	340	DIN 3760 - AS - 340 x 380 x 20 - NBR
2.6	4	5	1	20	400	360	DIN 3760 - AS - 360 x 400 x 20 - NBR
2.6	4	5	1	20	420	380	DIN 3760 - AS - 380 x 420 x 20 - NBR
2.6	4	5	1	20	440	400	DIN 3760 - AS - 400 x 440 x 20 - NBR
2.6	4	5	1	20	460	420	DIN 3760 - AS - 420 x 460 x 20 - NBR
2.6	4	5	1	20	480	440	DIN 3760 - AS - 440 x 480 x 20 - NBR
2.6	4	5	1	20	500	460	DIN 3760 - AS - 460 x 500 x 20 - NBR
2.6	4	5	1	20	520	480	DIN 3760 - AS - 480 x 520 x 20 - NBR
2.6	4	5	1	20	540	500	DIN 3760 - AS - 500 x 540 x 20 - NBR

نقد و بررسی‌ها

هنوز بررسی‌ای ثبت نشده است.

اولین کسی باشید که دیدگاهی می نویسد “DIN 3760 – AS”

DIN 3760 – AS

stdpart

گالری قطعه

جدول مشخصات کاسه نمد فرم AS مطابق DIN 3760

نقد و بررسی‌ها

کاتالوگ‌های مرتبط

DIN 625 T3-SKF

DIN 625-SKF

DIN 628-1-SKF

DIN 628-3-SKF

DIN 628-4-SKF

DIN 630-CB-SKF

DIN 630-EIR-SKF

DIN 630-TB-SKF

DIN 711-SKF

DIN 715-SKF

LM AJ Ballbush

LM Ballbush

LM L Ballbush

LM OP Ballbush

LME AJ Ballbush

LME Ballbush

LME L Ballbush

LME OP Ballbush

LMEF

LMEF L

LMEFM Ballbush

LMEFM Ballbush

LMEFP Ballbush

LMEFP-L Ballbush

LMEK

LMEK L

LMEKM Ballbush

LMEKP

LMEKP-L Ballbush

LMF Ballbush

LMF L Ballbush

LMFM Ballbush

LMFP Ballbush

LMFP L Ballbush

LMH Ballbush

LMH L Ballbush

LMHM Ballbush

LMHP Ballbush

LMHP L Ballbush

LMK Ballbush

LMK L

LMKM Ballbush

LMKP

LMKP L Ballbush

SBR

SBR Ballbush

SBS

SC

SCE

SCEV

SCEW

SCJ

SCV

SCW

SCWN

TBR

TBS

UCC Bearing

UCF Bearing

UCFA Bearing

UCFB Bearing

UCFC Bearing

UCFL Bearing

UCHA Bearing

UCP Bearing

UCPA Bearing

UCPH Bearing

UCT Bearing

UFL Bearing

UP Bearing

تامین کنندگان قطعات صنعتی

کاتالوگ‌های مرتبط

DIN 625 T3-SKF

DIN 625-SKF
